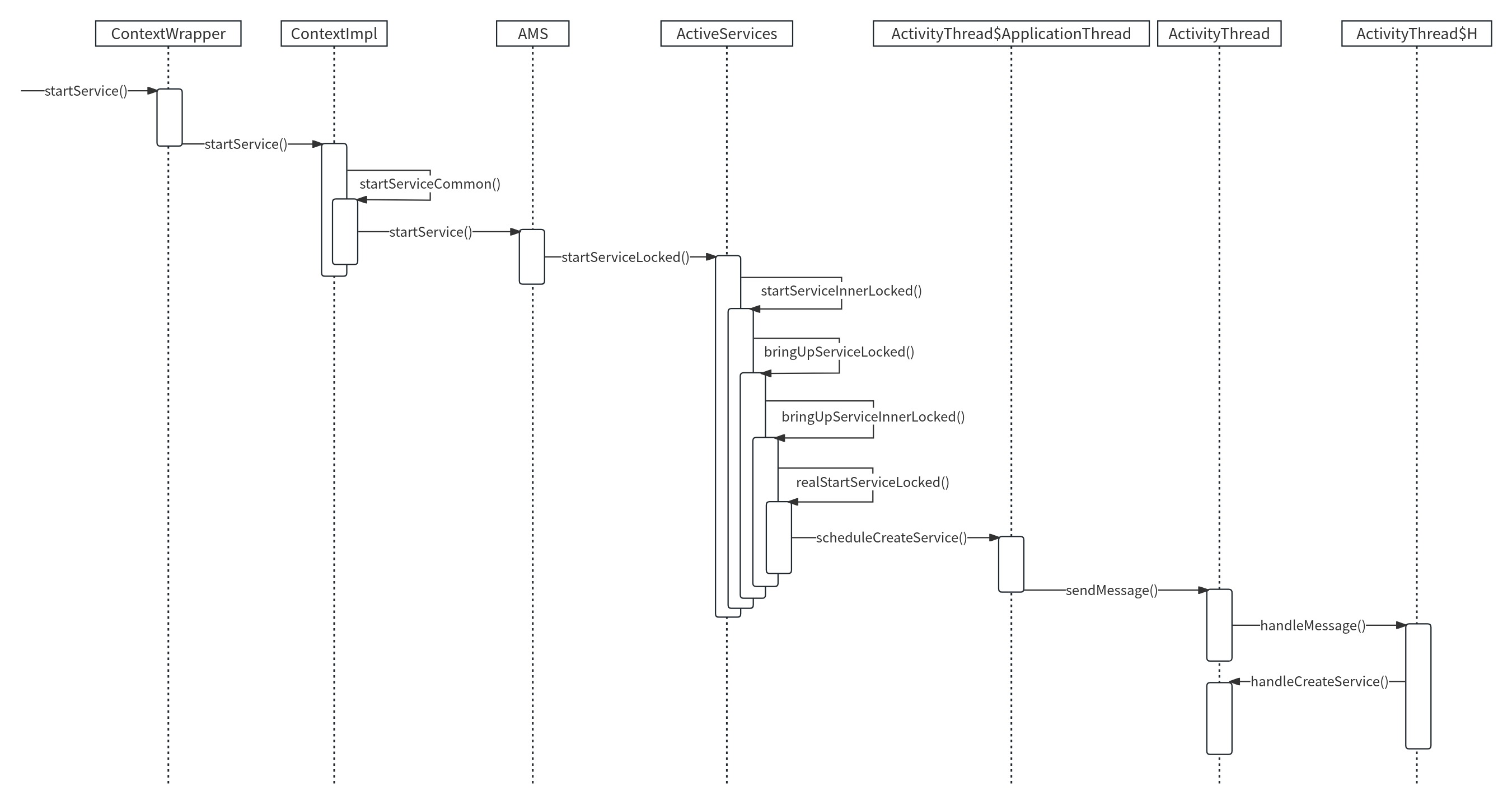

Service的启动过程

基于Android U

ContextImpl到AMS的调用过程

要启动Service，我们会调用startService()方法，它在ContextWrapper中实现。

1
2
3
4
frameworks/base/core/java/android/content/ContextWrapper.java
public @Nullable ComponentName startService(Intent service) {
    return mBase.startService(service);
}

mBase指的是ContextImpl，Activity的attach()方法中将ContextImpl赋值给ContextWrapper的成员变量mBase。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
frameworks/base/core/java/android/app/ContextImpl.java
public ComponentName startService(Intent service) {
    warnIfCallingFromSystemProcess();
    return startServiceCommon(service, false, mUser);
}

private ComponentName startServiceCommon(Intent service, boolean requireForeground,
        UserHandle user) {
    try {
        validateServiceIntent(service);
        service.prepareToLeaveProcess(this);
        ComponentName cn = ActivityManager.getService().startService(
                mMainThread.getApplicationThread(), service,
                service.resolveTypeIfNeeded(getContentResolver()), requireForeground,
                getOpPackageName(), getAttributionTag(), user.getIdentifier());  // 1
        ...
        return cn;
    } catch (RemoteException e) {
        ...
    }
}

在startService()方法中会返回startServiceCommon()方法，在startServiceCommon()方法中会在注释1处调用AMS的代理IActivityManager的startService()方法，最终调用的是AMS的startService()方法。

ActivityThread启动Service

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
frameworks/base/services/core/java/com/android/server/am/ActivityManagerService.java
private ComponentName startService(IApplicationThread caller, Intent service,
        String resolvedType, boolean requireForeground, String callingPackage,
        String callingFeatureId, int userId, boolean isSdkSandboxService,
        int sdkSandboxClientAppUid, String sdkSandboxClientAppPackage, String instanceName)
        throws TransactionTooLargeException {
    ...
    final int callingPid = Binder.getCallingPid();
    final int callingUid = Binder.getCallingUid();
    final long origId = Binder.clearCallingIdentity();
    ComponentName res;
    try {
        ...
        synchronized (this) {
            res = mServices.startServiceLocked(caller, service,
                    resolvedType, callingPid, callingUid,
                    requireForeground, callingPackage, callingFeatureId, userId,
                    isSdkSandboxService, sdkSandboxClientAppUid, sdkSandboxClientAppPackage,
                    instanceName);  // 1
        }
    } finally {
        ...
    }
    return res;
}

注释1处调用mServices的startServiceLocked()方法，mServices的类型是ActiveServices。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
frameworks/base/services/core/java/com/android/server/am/ActiveServices.java
ComponentName startServiceLocked(IApplicationThread caller, Intent service, String resolvedType,
        int callingPid, int callingUid, boolean fgRequired,
        String callingPackage, @Nullable String callingFeatureId, final int userId,
        BackgroundStartPrivileges backgroundStartPrivileges, boolean isSdkSandboxService,
        int sdkSandboxClientAppUid, String sdkSandboxClientAppPackage, String instanceName)
        throws TransactionTooLargeException {
    ...

    ServiceLookupResult res = retrieveServiceLocked(service, instanceName, isSdkSandboxService,
            sdkSandboxClientAppUid, sdkSandboxClientAppPackage, resolvedType, callingPackage,
            callingPid, callingUid, userId, true, callerFg, false, false, null, false);  // 1
    ...
    ServiceRecord r = res.record;  // 2
    ...
    final ComponentName realResult =
            startServiceInnerLocked(r, service, callingUid, callingPid,
                    callingProcessName, callingProcessState,
                    fgRequired, callerFg,
                    backgroundStartPrivileges, callingPackage);  // 3
    if (res.aliasComponent != null
            && !realResult.getPackageName().startsWith("!")
            && !realResult.getPackageName().startsWith("?")) {
        return res.aliasComponent;
    } else {
        return realResult;
    }
}

注释1处的retrieveServiceLocked()方法会查找是否有与参数service对应的ServiceRecord，如果没有找到，就会调用PackageManagerService去获取参数service对应的Service信息，并封装到ServiceRecord中，最后将ServiceRecord封装为ServiceLookupResult返回。其中ServiceRecord用于描述一个Service，和ActivityRecord类似。

在注释2处通过注释1处返回的ServiceLookupResult得到参数service对应的ServiceRecord，并传入到注释3处的startServiceInnerLocked()方法中。

1
2
3
4
5
6
7
8
9
10
11
12
frameworks/base/services/core/java/com/android/server/am/ActiveServices.java
private ComponentName startServiceInnerLocked(ServiceRecord r, Intent service,
        int callingUid, int callingPid, String callingProcessName,
        int callingProcessState, boolean fgRequired, boolean callerFg,
        BackgroundStartPrivileges backgroundStartPrivileges, String callingPackage)
        throws TransactionTooLargeException {
    ...
    ComponentName cmp = startServiceInnerLocked(smap, service, r, callerFg, addToStarting,
            callingUid, callingProcessName, callingProcessState,
            wasStartRequested, callingPackage);
    return cmp;
}

继续调用startServiceInnerLocked()。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
frameworks/base/services/core/java/com/android/server/am/ActiveServices.java
ComponentName startServiceInnerLocked(ServiceMap smap, Intent service, ServiceRecord r,
        boolean callerFg, boolean addToStarting, int callingUid, String callingProcessName,
        int callingProcessState, boolean wasStartRequested, String callingPackage)
        throws TransactionTooLargeException {
    ...
    String error = bringUpServiceLocked(r, service.getFlags(), callerFg,
            false /* whileRestarting */,
            false /* permissionsReviewRequired */,
            false /* packageFrozen */,
            true /* enqueueOomAdj */);  // 1
    ...
    if (error != null) {
        return new ComponentName("!!", error);
    }
    ...
    return r.name;
}

注释1处调用了bringUpServiceLocked()方法。

1
2
3
4
5
6
7
8
9
10
11
12
13
frameworks/base/services/core/java/com/android/server/am/ActiveServices.java
private String bringUpServiceLocked(ServiceRecord r, int intentFlags, boolean execInFg,
        boolean whileRestarting, boolean permissionsReviewRequired, boolean packageFrozen,
        boolean enqueueOomAdj)
        throws TransactionTooLargeException {
    try {
        ...
        return bringUpServiceInnerLocked(r, intentFlags, execInFg, whileRestarting,
                permissionsReviewRequired, packageFrozen, enqueueOomAdj);
    } finally {
        ...
    }
}

调用bringUpServiceInnerLocked()。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
frameworks/base/services/core/java/com/android/server/am/ActiveServices.java
private String bringUpServiceInnerLocked(ServiceRecord r, int intentFlags, boolean execInFg,
        boolean whileRestarting, boolean permissionsReviewRequired, boolean packageFrozen,
        boolean enqueueOomAdj)
        throws TransactionTooLargeException {
    ...
    final String procName = r.processName;  // 1
    ...
    ProcessRecord app;

    if (!isolated) {
        app = mAm.getProcessRecordLocked(procName, r.appInfo.uid);  // 2
        ...
        if (app != null) {
            final IApplicationThread thread = app.getThread();
            final int pid = app.getPid();
            final UidRecord uidRecord = app.getUidRecord();
            if (thread != null) {  // 3
                try {
                    ...
                    realStartServiceLocked(r, app, thread, pid, uidRecord, execInFg,
                            enqueueOomAdj);  // 4
                    return null;
                } catch (TransactionTooLargeException e) {
                    throw e;
                } catch (RemoteException e) {
                    Slog.w(TAG, "Exception when starting service " + r.shortInstanceName, e);
                } finally {
                    Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER);
                }
            }
        }
    } else {
        ...
    }


    if (app == null && !permissionsReviewRequired && !packageFrozen) {  // 5
        if (r.isSdkSandbox) {
            ...
        } else {
            app = mAm.startProcessLocked(procName, r.appInfo, true, intentFlags,
                    hostingRecord, ZYGOTE_POLICY_FLAG_EMPTY, false, isolated);  // 6
        }
        ...
    }
    ...
    return null;
}

注释1处得到ServiceRecord的processName值并赋给procName，其中processName用来描述Service想要在哪个进程中运行，默认是当前进程，我们也可以在AndroidManifest.xml文件中设置android:process属性来新开启一个进程运行Service。

在注释2处将procName和Service的uid传入到AMS的getProcessRecordLocked()方法中，查询是否存在一个与Service对应的ProcessRecord类型的对象app，ProcessRecord主要用来描述运行的应用程序进程的信息。

在注释5处判断Service对应的app为null则说明用来运行Service的应用程序进程不存在，则调用注释6处的AMS的startProcessLocked()方法来创建对应的应用程序进程。

这里只讨论没有设置android:process属性，即应用程序进程存在的情况。在注释3处判断如果用来运行Service的应用程序进程存在，则调用注释4处的realStartServiceLocked()方法来启动Service。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
frameworks/base/services/core/java/com/android/server/am/ActiveServices.java
private void realStartServiceLocked(ServiceRecord r, ProcessRecord app,
        IApplicationThread thread, int pid, UidRecord uidRecord, boolean execInFg,
        boolean enqueueOomAdj) throws RemoteException {
    ...
    try {
        ...
        thread.scheduleCreateService(r, r.serviceInfo,
                null /* compatInfo (unused but need to keep method signature) */,
                app.mState.getReportedProcState());
        ...
    } catch (DeadObjectException e) {
        ...
    } finally {
        ...
    }
    ...
}

在realStartServiceLocked()中调用了thread的scheduleCreateService()方法。其中thread是IApplicationThread类型的，它的实现是ActivityThread的内部类ApplicationThread。

1
2
3
4
5
6
7
8
9
10
frameworks/base/core/java/android/app/ActivityThread$ApplicationThread
public final void scheduleCreateService(IBinder token,
        ServiceInfo info, CompatibilityInfo compatInfo, int processState) {
    updateProcessState(processState, false);
    CreateServiceData s = new CreateServiceData();
    s.token = token;
    s.info = info;

    sendMessage(H.CREATE_SERVICE, s);
}

scheduleCreateService()方法将启动Service的参数封装成CreateServiceData，sendMessage()方法向H类发送类型为CREATE_SERVICE的消息，并将CreateServiceData传递过去。sendMessage()方法有多个重载方法，最终调用的sendMessage()方法如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
frameworks/base/core/java/android/app/ActivityThread.java
private void sendMessage(int what, Object obj, int arg1, int arg2, boolean async) {
    ...
    Message msg = Message.obtain();
    msg.what = what;
    msg.obj = obj;
    msg.arg1 = arg1;
    msg.arg2 = arg2;
    if (async) {
        msg.setAsynchronous(true);
    }
    mH.sendMessage(msg);
}

这里的mH指的是H，它是ActivityThread的内部类并继承自Handler，是应用程序进程中主线程的消息管理类。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
frameworks/base/core/java/android/app/ActivityThread.java
class H extends Handler {
	public void handleMessage(Message msg) {
        ...
        switch (msg.what) {
            ...
            case CREATE_SERVICE:
                ...
                handleCreateService((CreateServiceData)msg.obj);
                ...
                break;
            ...
        }
        ...
    }
}

handleMessage()方法根据消息类型为CREATE_SERVICE，会调用handleCreateService()方法。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
frameworks/base/core/java/android/app/ActivityThread.java
private void handleCreateService(CreateServiceData data) {
    ...
    final LoadedApk packageInfo = getPackageInfoNoCheck(data.info.applicationInfo);  // 1
    Service service = null;
    try {
        ...
        final java.lang.ClassLoader cl;
        // 2
        if (data.info.splitName != null) {
            cl = packageInfo.getSplitClassLoader(data.info.splitName);
        } else {
            cl = packageInfo.getClassLoader();
        }
        service = packageInfo.getAppFactory()
                .instantiateService(cl, data.info.name, data.intent);  // 3
        ContextImpl context = ContextImpl.getImpl(service
                .createServiceBaseContext(this, packageInfo));  // 4
        if (data.info.splitName != null) {
            context = (ContextImpl) context.createContextForSplit(data.info.splitName);
        }
        if (data.info.attributionTags != null && data.info.attributionTags.length > 0) {
            final String attributionTag = data.info.attributionTags[0];
            context = (ContextImpl) context.createAttributionContext(attributionTag);
        }
        // Service resources must be initialized with the same loaders as the application
        // context.
        context.getResources().addLoaders(
                app.getResources().getLoaders().toArray(new ResourcesLoader[0]));

        context.setOuterContext(service);
        service.attach(context, this, data.info.name, data.token, app,
                ActivityManager.getService());  // 5
        if (!service.isUiContext()) { // WindowProviderService is a UI Context.
            VirtualDeviceManager vdm = context.getSystemService(VirtualDeviceManager.class);
            if (mLastReportedDeviceId == Context.DEVICE_ID_DEFAULT
                    || vdm.isValidVirtualDeviceId(mLastReportedDeviceId)) {
                service.updateDeviceId(mLastReportedDeviceId);
            }
        }
        service.onCreate();  // 6
        mServicesData.put(data.token, data);
        mServices.put(data.token, service);  // 7
        ...
    } catch (Exception e) {
        ...
    }
}

注释1处获取要启动Service的应用程序的LoadedApk，LoadedApk是一个APK文件的描述类；

注释2处获取类加载器；

注释3处根据CreateServiceData对象中存储的Service信息，创建Service实例；

注释4处创建Service的上下文环境ContextImpl对象；

注释5处通过Service的attach()方法来初始化Service；

注释6处调用Service的onCreate()方法，这样Service就启动了；

注释7处将启动的Service加入到ActivityThread的成员变量mServices中，其中mService是ArrayMap类型。

Android
#启动流程 #Service
Service的启动过程
https://citrus-maxima.github.io/2024/03/10/Service的启动过程/
作者
柚子树
发布于
2024年3月10日
许可协议
