Configuration变更时更新应用程序配置

基于Android U，只保留了关键调用步骤，略去了细节。

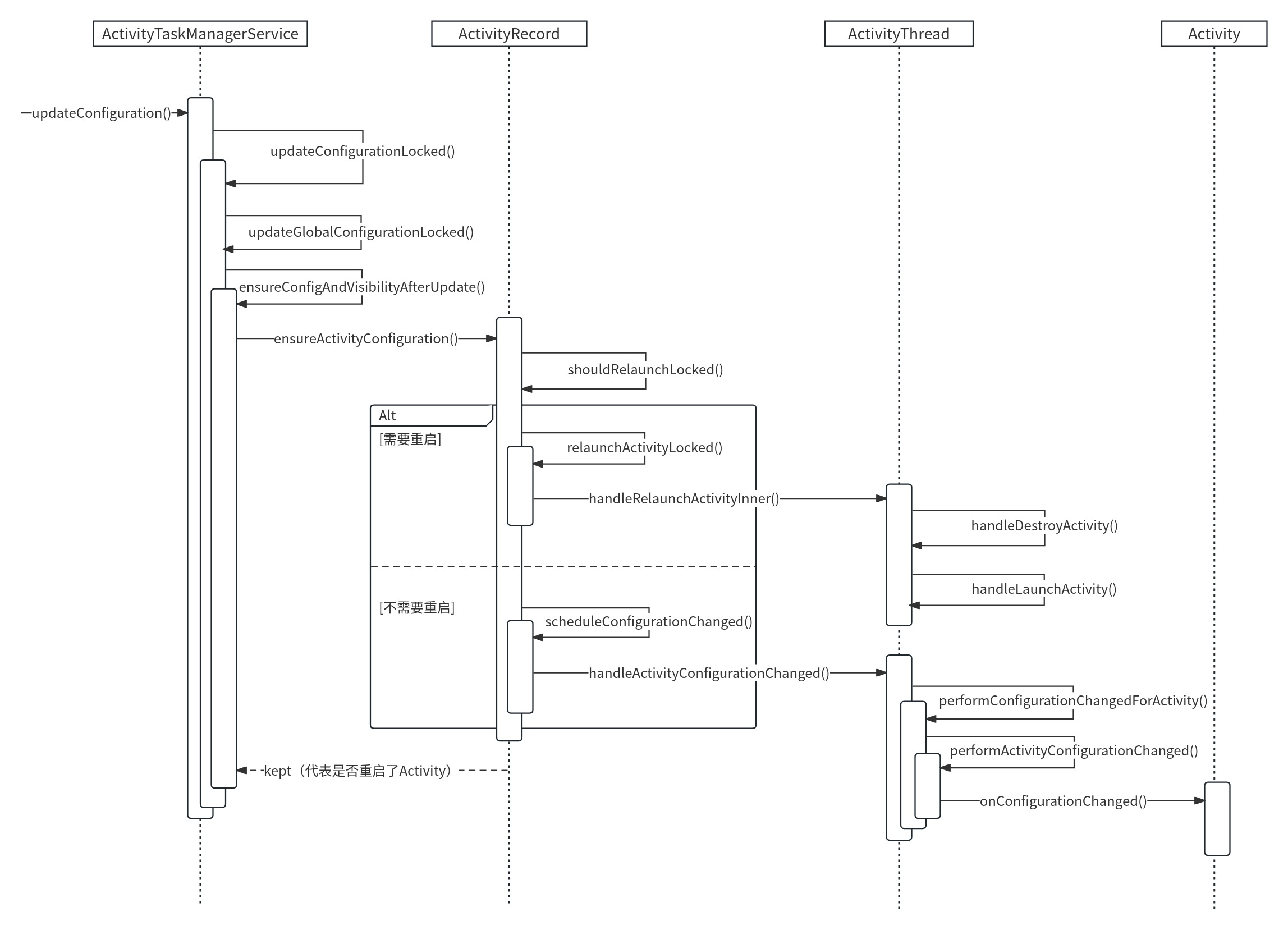

当设备配置发生变更时，系统会调用ATMS的updateConfiguration()方法，来通知ATMS处理configuration change事件。时序图如下。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
frameworks/base/services/core/java/com/android/server/wm/ActivityTaskManagerService.java
public boolean updateConfiguration(Configuration values) {
    ...
    synchronized (mGlobalLock) {
        ...
        try {
            ...
            updateConfigurationLocked(values, null, false, false /* persistent */,
                    UserHandle.USER_NULL, false /* deferResume */,
                    mTmpUpdateConfigurationResult);  // 1
            return mTmpUpdateConfigurationResult.changes != 0;
        } finally {
            ...
        }
    }
}

注释1处调用updateConfigurationLocked()。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
frameworks/base/services/core/java/com/android/server/wm/ActivityTaskManagerService.java
boolean updateConfigurationLocked(Configuration values, ActivityRecord starting,
        boolean initLocale, boolean persistent, int userId, boolean deferResume,
        ActivityTaskManagerService.UpdateConfigurationResult result) {
    ...
    try {
        if (values != null) {
            changes = updateGlobalConfigurationLocked(values, initLocale, persistent, userId);  // 1
        }

        if (!deferResume) {
            kept = ensureConfigAndVisibilityAfterUpdate(starting, changes);  // 2
        }
    } finally {
        ...
    }
    ...
    return kept;
}

注释1处更新当前配置；

注释2处确保给定的Activity使用的是当前配置，如果返回true表示Activity未被重启，否则让该Activity destroyed以适配当前配置。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
frameworks/base/services/core/java/com/android/server/wm/ActivityTaskManagerService.java
boolean ensureConfigAndVisibilityAfterUpdate(ActivityRecord starting, int changes) {
    ...
    if (mainRootTask != null) {
        ...
        if (starting != null) {
            kept = starting.ensureActivityConfiguration(changes,
                    false /* preserveWindow */);  // 1
            ...
        }
    }

    return kept;
}

注释1处调用ActivityRecord#ensureActivityConfiguration()真正完成Activity配置更新。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
frameworks/base/services/core/java/com/android/server/wm/ActivityRecord.java
boolean ensureActivityConfiguration(int globalChanges, boolean preserveWindow) {
    return ensureActivityConfiguration(globalChanges, preserveWindow,
            false /* ignoreVisibility */, false /* isRequestedOrientationChanged */);
}

boolean ensureActivityConfiguration(int globalChanges, boolean preserveWindow,
        boolean ignoreVisibility, boolean isRequestedOrientationChanged) {
    // 这里省略了一些return ture的分支
    // 如果马上会再次调用updateConfiguration()，则忽略本次修改，交由下次处理，节省时间
    // 如果当前Activity已经finish，则忽略
    // 如果Activity的状态是DESTROYED，则忽略
    // 如果Activity不可见。则忽略
    ...
    // 如果新旧配置相同，则忽略
    mTmpConfig.setTo(mLastReportedConfiguration.getMergedConfiguration());
    if (getConfiguration().equals(mTmpConfig) && !forceNewConfig && !displayChanged) {
        ProtoLog.v(WM_DEBUG_CONFIGURATION, "Configuration & display "
                + "unchanged in %s", this);
        return true;
    }

    // 计算哪些配置值发生了改变
    final int changes = getConfigurationChanges(mTmpConfig);

    // Update last reported values.
    final Configuration newMergedOverrideConfig = getMergedOverrideConfiguration();

    setLastReportedConfiguration(getProcessGlobalConfiguration(), newMergedOverrideConfig);

    // Activity状态是INITIALIZING，则忽略
    ...

    if (changes == 0 && !forceNewConfig) {
        ...
        if (displayChanged) {
            scheduleActivityMovedToDisplay(newDisplayId, newMergedOverrideConfig);
        } else {
            scheduleConfigurationChanged(newMergedOverrideConfig);
        }
        notifyDisplayCompatPolicyAboutConfigurationChange(
                mLastReportedConfiguration.getMergedConfiguration(), mTmpConfig);
        return true;
    }
    ...
    boolean shouldRelaunchLocked = shouldRelaunchLocked(changes, mTmpConfig);  // 1
    ...
    if (shouldRelaunchLocked || forceNewConfig) {  // 重启Activity
        ...
        if (mState == PAUSING) {
            ...
            // 如果当前Activity处于PAUSING状态，则标记其需要重启，等到PAUSING后reLaunch
            deferRelaunchUntilPaused = true;
            preserveWindowOnDeferredRelaunch = preserveWindow;
            return true;
        } else {
            ...
            relaunchActivityLocked(preserveWindow);
        }

        // All done...  tell the caller we weren't able to keep this activity around.
        return false;
    }

    // Activity可以自己处理配置变更走这里
    if (displayChanged) {
        scheduleActivityMovedToDisplay(newDisplayId, newMergedOverrideConfig);
    } else {
        scheduleConfigurationChanged(newMergedOverrideConfig);
    }
    ...
    return true;
}

决定是否需要reLaunch的关键参数是shouldRelaunchLocked和forceNewConfig，任一值为true，就会重启Activity，而不会调用Activity#onConfigurationChanged()。

注释1处shouldRelaunchLocked()会通过对比事件是否在Activity自己可以处理的范围内来决定是否reLaunch，其中包括AndroidManifest.xml中配置的android:configChanges属性。

  1. 重启Activity分支

    执行ActivityRecord#relaunchActivityLocked()，经过层层调用，最终调用到ActivityThread#handleRelaunchActivityInner()。

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    frameworks/base/core/java/android/app/ActivityThread.java
    private void handleRelaunchActivityInner(ActivityClientRecord r, int configChanges,
            List<ResultInfo> pendingResults, List<ReferrerIntent> pendingIntents,
            PendingTransactionActions pendingActions, boolean startsNotResumed,
            Configuration overrideConfig, String reason) {
        ...
        handleDestroyActivity(r, false, configChanges, true, reason);
        ...
        handleLaunchActivity(r, pendingActions, mLastReportedDeviceId, customIntent);
    }

    在handleRelaunchActivityInner()中，先调用handleDestroyActivity()销毁当前Activity，然后调用handleLaunchActivity()重启Activity。Activity有一个回调方法onRetainNonConfigurationInstance()，当设备信息变更时，会保存该方法返回的Object，之后可以在重启的Activity中通过getLastNonConfigurationInstance()获取该Object。

  2. 不重启Activity分支

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    frameworks/base/services/core/java/com/android/server/wm/ActivityRecord.java
    boolean ensureActivityConfiguration(int globalChanges, boolean preserveWindow,
            boolean ignoreVisibility, boolean isRequestedOrientationChanged) {
        ...
        // Activity可以自己处理配置变更走这里
        if (displayChanged) {
            scheduleActivityMovedToDisplay(newDisplayId, newMergedOverrideConfig);
        } else {
            scheduleConfigurationChanged(newMergedOverrideConfig);
        }
        ...
    }

    这两个分支最终都会调用ActivityThread#handleActivityConfigurationChanged()方法。

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    frameworks/base/core/java/android/app/ActivityThread.java
    void handleActivityConfigurationChanged(ActivityClientRecord r,
            @NonNull Configuration overrideConfig, int displayId, boolean alwaysReportChange) {
        ...
        final Configuration reportedConfig = performConfigurationChangedForActivity(r,
                mConfigurationController.getCompatConfiguration(),
                movedToDifferentDisplay ? displayId : r.activity.getDisplayId(),
                alwaysReportChange);
        ...
    }

    调用performConfigurationChangedForActivity()。

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    frameworks/base/core/java/android/app/ActivityThread.java
    private Configuration performConfigurationChangedForActivity(ActivityClientRecord r,
            Configuration newBaseConfig, int displayId, boolean alwaysReportChange) {
        r.tmpConfig.setTo(newBaseConfig);
        if (r.overrideConfig != null) {
            r.tmpConfig.updateFrom(r.overrideConfig);
        }
        final Configuration reportedConfig = performActivityConfigurationChanged(r,
                r.tmpConfig, r.overrideConfig, displayId, alwaysReportChange);
        freeTextLayoutCachesIfNeeded(r.activity.mCurrentConfig.diff(r.tmpConfig));
        return reportedConfig;
    }

    调用performActivityConfigurationChanged()。

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    private Configuration performActivityConfigurationChanged(ActivityClientRecord r,
            Configuration newConfig, Configuration amOverrideConfig, int displayId,
            boolean alwaysReportChange) {
        final Activity activity = r.activity;
        ...
        final Configuration currentResConfig = activity.getResources().getConfiguration();
        final int diff = currentResConfig.diffPublicOnly(newConfig);
        final boolean hasPublicResConfigChange = diff != 0;
        // TODO(b/173090263): Use diff instead after the improvement of AssetManager and
        // ResourcesImpl constructions.
        final boolean shouldUpdateResources = hasPublicResConfigChange
                || shouldUpdateResources(activityToken, currentResConfig, newConfig,
                amOverrideConfig, movedToDifferentDisplay, hasPublicResConfigChange);
        final boolean shouldReportChange = shouldReportChange(
                activity.mCurrentConfig, newConfig, r.mSizeConfigurations,
                activity.mActivityInfo.getRealConfigChanged(), alwaysReportChange);
        // Nothing significant, don't proceed with updating and reporting.
        if (!shouldUpdateResources && !shouldReportChange) {
            return null;
        }
        ...
        final Configuration configToReport = createNewConfigAndUpdateIfNotNull(newConfig,
                contextThemeWrapperOverrideConfig);
        ...
        activity.mConfigChangeFlags = 0;
        if (shouldReportChange) {
            activity.mCalled = false;
            activity.mCurrentConfig = new Configuration(newConfig);
            activity.onConfigurationChanged(configToReport);  // 1
            if (!activity.mCalled) {
                throw new SuperNotCalledException("Activity " + activity.getLocalClassName() +
                                " did not call through to super.onConfigurationChanged()");
            }
        }

        return configToReport;
    }

    注释1处调用Activity.onConfigurationChanged()。

总结：设备配置发生变更时，系统会根据一系列条件决定是重启Activity，还是调用Activity.onConfigurationChanged()。
